Produkte: Hydraulikkomponenten > SAE Hochdruckflanschverbindungen > Vierkant-Anschweißflansch ND 250
Vierkant-Anschweißflansch ND 250
Tabellen mit technischen Daten unserer SAE Hochdruckflanschverbindungen. Wählen Sie bitte aus unserer Produktpalette aus:

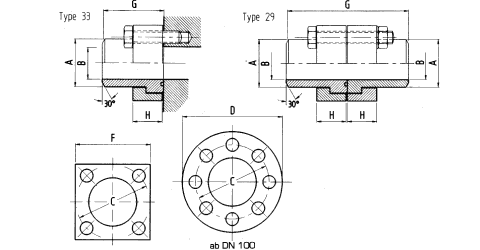

Vierkant-Anschweißflansch ND 250
Ausführung:
Schweißfugenform nach DIN 2559
Material:
Vierkant |
ST 52.3 / C45 |
Stutzen |
ST 52.3 / C15 |
auch in 1.4571 lieferbar |
Bestellbezeichnung: |
|
- nur Anschlussflansch |
VKA 33.../... |
- Flanschkupplung |
VKK 29.../... |
- inkl. Schraubensatz und O-Ring |
.../...M |
Alle Angaben ohne Gewähr. Änderungen vorbehalten.
↓ Anschlussflansch, Abmessungen
↓ Anschlussflansch, O-Ring; Schrauben M; Gewicht
max. Betriebs- druck kg/cm² |
DN |
Typ |
Abmessungen |
||||||
A |
B |
C |
F |
D |
H |
G |
|||
Anschlussflansch |
|||||||||
250 |
10 |
VKA 33-10/17 |
17,2 × 3,6 |
10 |
44 |
50 |
|
20 |
43 |
250 |
16 |
VKA 33-16/21 |
21,3 × 2,6 |
16 |
54 |
60 |
|
20 |
50 |
250 |
20 |
VKA 33-20/26 |
26,9 × 3,6 |
20 |
64 |
70 |
|
20 |
56 |
250 |
25 |
VKA 33-25/33 |
33,7 × 4,5 |
25 |
72 |
80 |
|
25 |
64 |
250 |
32 |
VKA 33-32/42 |
42,4 × 5,6 |
31 |
80 |
90 |
|
30 |
68 |
250 |
40 |
VKA 33-40/60 |
60,3 × 8 |
44 |
98 |
100 |
|
38 |
80 |
250 |
50 |
VKA 33-50/76 |
76,1 × 10 |
56 |
118 |
120 |
|
47 |
98 |
250 |
65 |
VKA 33-65/88 |
88,9 × 11 |
67 |
145 |
150 |
|
48 |
109 |
250 |
80 |
VKA 33-80/101 |
101,6 × 12,5 |
77 |
175 |
180 |
|
58 |
135 |
250 |
100 |
VKA 33-100/139 |
139,7 × 17,5 |
105 |
200 |
|
245 |
70 |
150 |
250 |
125 |
VKA 33-125/168 |
168,3 × 20 |
128 |
245 |
|
300 |
80 |
190 |
250 |
150 |
VKA 33-150/193 |
193,7 × 25 |
144 |
290 |
|
355 |
90 |
190 |
max. Betriebs- druck kg/cm² |
DN |
Typ |
O-Ring |
Schrauben M |
Gewicht kg |
Anschlussflansch |
|||||
250 |
10 |
VKA 33-10/17 |
16,3 × 2,4 |
4 / M 10 × 35 |
0,44 |
250 |
16 |
VKA 33-16/21 |
25,3 × 2,4 |
4 / M 10 × 35 |
0,71 |
250 |
20 |
VKA 33-20/26 |
29,8 × 2,6 |
4 / M 12 × 35 |
0,90 |
250 |
25 |
VKA 33-25/33 |
34,5 × 2,6 |
4 / M 12 × 40 |
1,40 |
250 |
32 |
VKA 33-32/42 |
43,0 × 3,0 |
4 / M 16 × 50 |
2,10 |
250 |
40 |
VKA 33-40/60 |
53,3 × 5,33 |
4 / M 16 × 60 |
3,10 |
250 |
50 |
VKA 33-50/76 |
61,0 × 5,0 |
4 / M 20 × 70 |
5,40 |
250 |
65 |
VKA 33-65/88 |
75,0 × 5,0 |
4 / M 24 × 75 |
9,00 |
250 |
80 |
VKA 33-80/101 |
88,0 × 6,0 |
4 / M 30 × 90 |
16,90 |
250 |
100 |
VKA 33-100/139 |
115,0 × 6,0 |
8 / M 24 × 100 |
27,82 |
250 |
125 |
VKA 33-125/168 |
148,0 × 7,0 |
8 / M 30 × 110 |
47,70 |
250 |
150 |
VKA 33-150/193 |
183,5 × 7,0 |
8 / M 36 × 130 |
53,20 |
max. Betriebs- druck kg/cm² |
DN |
Typ |
Abmessungen |
||||||
A |
B |
C |
F |
D |
H |
G |
|||
Flanschkupplung |
|||||||||
250 |
10 |
VKK 29-10/17 |
17,2 × 3,6 |
10 |
44 |
50 |
|
20 |
82 |
250 |
16 |
VKK 29-16/21 |
21,3 × 2,6 |
16 |
54 |
60 |
|
20 |
96 |
250 |
20 |
VKK 29-20/26 |
26,4 × 3,6 |
20 |
64 |
70 |
|
20 |
106 |
250 |
25 |
VKK 29-25/33 |
33,7 × 4,5 |
25 |
72 |
80 |
|
25 |
122 |
250 |
32 |
VKK 29-32/42 |
42,4 × 5,6 |
31 |
80 |
90 |
|
30 |
130 |
250 |
40 |
VKK 29-40/60 |
60,3 × 8 |
44 |
98 |
100 |
|
38 |
153 |
250 |
50 |
VKK 29-50/76 |
76,1 × 10 |
56 |
118 |
120 |
|
47 |
190 |
250 |
65 |
VKK 29-65/88 |
88,9 × 11 |
67 |
145 |
150 |
|
48 |
210 |
250 |
80 |
VKK 29-80/101 |
101,6 × 12,5 |
77 |
175 |
180 |
|
58 |
262 |
250 |
100 |
VKK 29-100/139 |
139,7 × 17,5 |
105 |
200 |
|
245 |
70 |
292 |
250 |
125 |
VKK 29-125/168 |
168,3 × 20 |
128 |
245 |
|
300 |
80 |
372 |
250 |
150 |
VKK 29-150/193 |
193,7 × 25 |
144 |
290 |
|
355 |
90 |
380 |
max. Betriebs- druck kg/cm² |
DN |
Typ |
O-Ring |
Schrauben M |
Gewicht kg |
Flanschkupplung |
|||||
250 |
10 |
VKK 29-10/17 |
16,3 × 2,4 |
4 / M 10 × 55 |
0,80 |
250 |
16 |
VKK 29-16/21 |
25,3 × 2,4 |
4 / M 10 × 60 |
1,22 |
250 |
20 |
VKK 29-20/26 |
29,8 × 2,6 |
4 / M 12 × 60 |
1,70 |
250 |
25 |
VKK 29-25/33 |
34,5 × 2,6 |
4 / M 12 × 70 |
2,70 |
250 |
32 |
VKK 29-32/42 |
43,0 × 3,0 |
4 / M 16 × 80 |
4,00 |
250 |
40 |
VKK 29-40/60 |
53,3 × 5,33 |
4 / M 16 × 100 |
6,00 |
250 |
50 |
VKK 29-50/76 |
61,0 × 5,0 |
4 / M 20 × 120 |
10,30 |
250 |
65 |
VKK 29-65/88 |
75,0 × 5,0 |
4 / M 24 × 130 |
17,45 |
250 |
80 |
VKK 29-80/101 |
88,0 × 6,0 |
4 / M 30 × 150 |
32,60 |
250 |
100 |
VKK 29-100/139 |
115,0 × 6,0 |
8 / M 24 × 170 |
54,00 |
250 |
125 |
VKK 29-125/168 |
148,0 × 7,0 |
8 / M 30 × 220 |
90,00 |
250 |
150 |
VKK 29-150/193 |
183,5 × 7,0 |
8 / M 36 × 220 |
105,00 |
